Тестовый блок питания

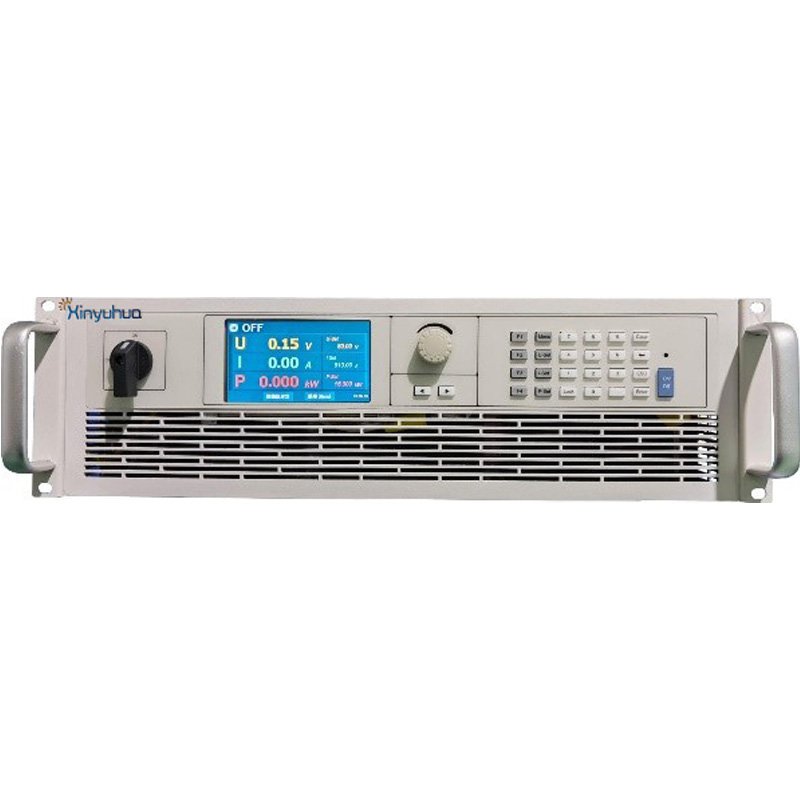

Симулятор Массива Фотоэлектрических Систем

Введение в продукт:

Симулятор массива фотоэлектрических систем использует высокочастотную изоляцию и технологию активной коррекции коэффициента мощности в сочетании с передовой технологией многорезонансного мягкого переключения LLC и имеет чрезвычайно высокую эффективность в любой рабочей точке. Стандартное шасси 3U достигает высокой выходной мощности 15 кВт. Функция автоматического диапазона выходного сигнала этой серии источников питания может обеспечить более широкий диапазон комбинаций напряжения и тока во всем диапазоне мощности, что значительно расширяет гибкость использования.

Запросить сейчас Добавить в корзину запросов

подробности о продукте

Характеристики продукта

(1) Цветной сенсорный экран, простое, быстрое и интуитивно понятное управление;

(2) Автоматический диапазон, широкий диапазон входного сигнала

(3) Напряжение одной машины от 0-80 В до 0-1500 В, мощность от 0-2 кВт до 0-15 кВт

(4) С функцией параллельной работы, увеличение выходной мощности

(5) Автоматическое переключение режимов постоянного напряжения (CV), постоянного тока (CC) и постоянной мощности (CP)

(6) При активной коррекции коэффициента мощности входной мощности может достигать 0,99.

(7) Применяется технология многорезонансного мягкого переключения LLC, эффективность может достигать 93%.

(8) Полные функции защиты: OVP, OCP, OPP, OTP и защита от перенапряжения/понижения входного напряжения

(9) Встроено несколько стандартных тестовых кривых для быстрого вызова

(10) С функцией моделирования фотоэлектрической батареи

(11) С функцией имитации батареи

(12) Благодаря функции «черного ящика» он может автоматически регистрировать рабочие параметры в ненормальных условиях для последующей проверки и обслуживания.

(13) Поддержка нескольких пультов дистанционного управления, стандартный RS232, дополнительный RS485, CAN, LAN, GPIB, аналоговое управление и т. д.

Типичные рекомендации

u Широкий диапазон выходных возможностей автоматического диапазона

Симулятор фотоэлектрической батареи расширяет диапазон комбинаций напряжения и тока при полной мощности, а выходной диапазон одного источника питания в 3 раза превышает диапазон традиционного источника питания.

Например, фотоэлектрический симулятор может обеспечить выходной ток 30 А при напряжении 500 В, выходной ток 90 А при напряжении 166,6 В и полную выходную мощность 15 кВт в любой точке напряжения в диапазоне 166,6–500 В. В то время как традиционный источник питания 500 В/15 кВт обеспечивает выходной ток 30 А при напряжении 500 В, он может обеспечить выходной ток только 30 А при напряжении 166,6 В, а мощность снижается до 5 кВт.

Симулятор фотоэлектрического массива Нормальное электропитание

u Real time display of simulation curve of PV array simulator in oscilloscope mode

The PV array simulator has a built-in SAS model, which can simulate the IV/PV curve of the solar cell array. After the user simply sets the parameters, the curve can be generated internally and output, so as to test the static and dynamic maximum power tracking efficiency of the inverter. At the same time, this mode has the oscilloscope function, which can display the IV/PV curve on the touch screen interface, and display the current working coordinate point in real time. It is intuitive, simple and efficient.

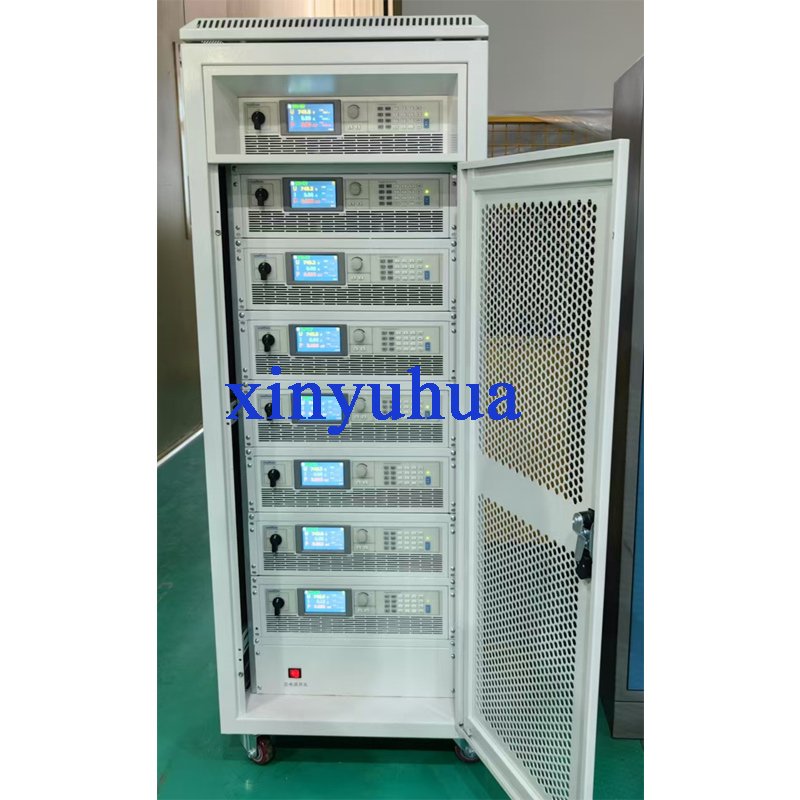

u Функция параллельной машины реализует расширение

Спец.:

Product model		XD6380 -120M	XD630 -150M	XD6380 -170	XD6380 -340	XD6380 -510	XD6380 -510X
Input	phase	one-phase two-wire+PE		three-phase three-wire+PE
	voltage	198V~242VAC		340V~420VAC
	frequency	47-63HZ
Output	voltage	0～80V
	current	0~120A	0~150A	0~170A	0~340A	0~510A	0~510A
	power	0~1.8KW	0~3KW	0~5KW	0~10KW	0~15KW	0~18KW
Display mode		4.3 inch colorful LCD screen
Voltage resolution		0.01V
Current resolution		0.01A(＞1000A,0.1A)
Power resolution		0.001kW(＞100kW,0.01kW)
Setting accuracy¹	voltage	≤0.10%F.S.
	current	≤0.25%F.S.
	power	≤1.00%F.S.
Measuring accuracy	voltage	≤0.10%F.S.
	current	≤0.25%F.S.
	power	≤1.00%F.S.
Ripples 20Hz~2MHz	Vrms	30mV
	Vpp	250mV
Load effect	voltage	≤0.05%F.S.
	current	≤0.15%F.S.
Source effect	voltage	≤0.02%F.S.
	current	≤0.05%F.S.
Transient response time²		≤2ms
Rise time		50ms(10%-90%)
Temperature drift	voltage	0.05% set value
	current	0.05% set value
Typical power factor		≥0.99
Noise		≤65dB(A)
OVP range		110%F.S
Voltage compensation		Maximum lead voltage reduction compensation: 4V
Communication function		Standard:RS-232, optional:485, GPIB, LAN, CAN
Protective function		OVP, OCP, OPP, OTP, Vsense reverse protection, input OV/LV protection
Analog interface(optional)		Start, stop, alarm, 0-5V, 0-10V or 4-20mA
Efficiency		～93%
Operating temperature		0~40℃
Storage temperature		-10~70℃
Humidity		20%~90%,no condensation
Volume		19" Standard chassis 3U height 482×133.3×610
Weight		17kg	17kg	18kg	29kg	40kg	41kg
Remark		1. Set the test condition of accuracy/measurement accuracy as (25℃±5℃); 2. The time it takes for the output voltage to return to within "0.75% of the stable value" when the load changes from 100% to 50% or reverse.

Product model

XD63300

-30M

XD63300

-40M

XD63300

-50

XD63300

-100

XD63300

-150

XD63300

-150

Input

phase

one-phase two-wire+PE

three-phase three-wire+PE

voltage

198V~242VAC

340V~420VAC

frequency

47-63HZ

Output

voltage

0～300V

current

0~30A

0~40A

0~50A

0~100A

0~150A

power

0~1.8KW

0~3KW

0~5KW

0~10KW

0~15KW

0~18KW

Display mode

4.3 inch colorful LCD screen

Voltage resolution

0.01V

Current resolution

0.01A(＞1000A,0.1A)

Power resolution

0.001kW(＞100kW,0.01kW)

Setting accuracy¹

voltage

≤0.10%F.S.

current

≤0.25%F.S.

power

≤1.00%F.S.

Measuring accuracy

voltage

≤0.10%F.S.

current

≤0.25%F.S.

power

≤1.00%F.S.

Ripples

20Hz~2MHz

Vrms

50mV

Vpp

450mV

Load effect

voltage

≤0.05%F.S.

current

≤0.15%F.S.

Source effect

voltage

≤0.02%F.S.

current

≤0.05%F.S.

Transient response time²

≤5ms

Rise time

50ms(10%-90%)

Temperature drift

voltage

0.05% set value

current

0.05% set value

Typical power factor

≥0.99

Noise

≤65dB(A)

OVP range

110%F.S.

Voltage compensation

Maximum lead voltage reduction compensation: 3V

Communication function

Standard:RS-232, optional:485, GPIB, LAN, CAN

Protective function

OVP, OCP, OPP, OTP, Vsense reverse protection, input OV/LV protection

Analog interface(optional)

Start, stop, alarm, 0-5V, 0-10V or 4-20mA

Efficiency

～93%

Operating temperature

0~40℃

Storage temperature

-10~70℃

Humidity

20%~90%,no condensation

Volume

19" Standard chassis 3U height 482×133.3×610

Weight

17kg

18kg

29kg

40kg

41kg

Remark

1. Set the test condition of accuracy/measurement accuracy as (25℃±5℃);

2. The time it takes for the output voltage to return to within "0.75% of the stable value" when the load changes from 100% to 50% or reverse.

Product model		XD63500-30	XD63500-60	XD63500-90
Input	phase	three-phase three-wire+PE
	voltage	340V~420VAC
	frequency	47-63HZ
Output	voltage	0～500V
	current	0~30A	0~60A	0~90A
	power	0~5KW	0~10KW	0~15KW
Display mode		4.3 inch colorful LCD screen
Voltage resolution		0.01V
Current resolution		0.01A(＞1000A,0.1A)
Power resolution		0.001kW(＞100kW,0.01kW)
Setting accuracy¹	voltage	≤0.10%F.S.
	current	≤0.25%F.S.
	power	≤1.00%F.S.
Measuring accuracy	voltage	≤0.10%F.S.
	current	≤0.25%F.S.
	power	≤1.00%F.S.
Ripples 20Hz~2MHz	Vrms	70mV
	Vpp	700mV
Load effect	voltage	≤0.05%F.S.
	current	≤0.15%F.S.
Source effect	voltage	≤0.02%F.S.
	current	≤0.05%F.S.
Transient response time²		≤2ms
Rise time		50ms(10%-90%)
Temperature drift	voltage	0.05% set value
	current	0.05% set value
Typical power factor		≥0.99
Noise		≤65dB(A)
OVP range		110%F.S
Voltage compensation		Maximum lead voltage reduction compensation: 25V
Communication function		Standard:RS-232, optional:485, GPIB, LAN, CAN
Protective function		OVP, OCP, OPP, OTP, Vsense reverse protection, input OV/LV protection
Analog interface(optional)		Start, stop, alarm, 0-5V, 0-10V or 4-20mA
Efficiency		～93%
Operating temperature		0~40℃
Storage temperature		-10~70℃
Humidity		20%~90%,no condensation
Volume		19" Standard chassis 3U height 482×133.3×610
Weight		18kg	29kg	40kg
Remark		1. Set the test condition of accuracy/measurement accuracy as (25℃±5℃); 2. The time it takes for the output voltage to return to within "0.75% of the stable value" when the load changes from 100% to 50% or reverse.

Product model		XD63500 -20M	XD63500 -30M	XD63500 -40	XD63500 -80	XD63500 -120	XD63500 -120X
Input	phase	one-phase two-wire+PE		three-phase three-wire+PE
	voltage	198V~242VAC		340V~420VAC
	frequency	47-63HZ
Output	voltage	0～500V
	current	0~20A	0~30A	0~40A	0~80A	0~120A	0~120A
	power	0~1.8KW	0~3KW	0~5KW	0~10KW	0~15KW	0~18KW
Display mode		4.3 inch colorful LCD screen
Voltage resolution		0.01V
Current resolution		0.01A(＞1000A,0.1A)
Power resolution		0.001kW(＞100kW,0.01kW)
Setting accuracy¹	voltage	≤0.10%F.S.
	current	≤0.25%F.S.
	power	≤1.00%F.S.
Measuring accuracy	voltage	≤0.10%F.S.
	current	≤0.25%F.S.
	power	≤1.00%F.S.
Ripples 20Hz~2MHz	Vrms	70mV
	Vpp	700mV
Load effect	voltage	≤0.05%F.S.
	current	≤0.15%F.S.
Source effect	voltage	≤0.02%F.S.
	current	≤0.05%F.S.
Transient response time²		≤2ms
Rise time		50ms(10%-90%)
Temperature drift	voltage	0.05% set value
	current	0.05% set value
Typical power factor		≥0.99
Noise		≤65dB(A)
OVP range		110%F.S
Voltage compensation		Maximum lead voltage reduction compensation: 25V
Communication function		Standard:RS-232, optional:485, GPIB, LAN, CAN
Protective function		OVP, OCP, OPP, OTP, Vsense reverse protection, input OV/LV protection
Analog interface(optional)		Start, stop, alarm, 0-5V, 0-10V or 4-20mA
Efficiency		～93%
Operating temperature		0~40℃
Storage temperature		-10~70℃
Humidity		20%~90%,no condensation
Volume		19" Standard chassis 3U height 482×133.3×610
Weight		17kg	17kg	18kg	29kg	40kg	41kg
Remark		1. Set the test condition of accuracy/measurement accuracy as (25℃±5℃); 2. The time it takes for the output voltage to return to within "0.75% of the stable value" when the load changes from 100% to 50% or reverse.

Product model		XD63750 -10M	XD63750 -15M	XD63750 -20M	XD63750 -40	XD63750 -60	XD63750 -60X
Input	phase	one-phase two-wire+PE		three-phase three-wire+PE
	voltage	198V~242VAC		340V~420VAC
	frequency	47-63HZ
Output	voltage	0～750V
	current	0~10A	0~15A	0~20A	0~40A	0~60A	0~60A
	power	0~1.8KW	0~3KW	0~5KW	0~10KW	0~15KW	0~18KW
Display mode		4.3 inch colorful LCD screen
Voltage resolution		0.1V
Current resolution		0.01A(＞1000A时,0.1A)
Power resolution		0.001kW(＞100kW时,0.01kW)
Setting accuracy¹	voltage	≤0.10%F.S.
	current	≤0.25%F.S.
	power	≤1.00%F.S.
Measuring accuracy	voltage	≤0.10%F.S.
	current	≤0.25%F.S.
	power	≤1.00%F.S.
Ripples 20Hz~2MHz	Vrms	200mV
	Vpp	800mV
Load effect	voltage	≤0.05%F.S.
	current	≤0.15%F.S.
Source effect	voltage	≤0.02%F.S.
	current	≤0.05%F.S.
Transient response time²		≤2ms
Rise time		50ms(10%-90%)
Temperature drift	voltage	0.05% set value
	current	0.05% set value
Typical power factor		≥0.99
Noise		≤65dB(A)
OVP range		110%F.S
Voltage compensation		Maximum lead voltage reduction compensation: 37.5V
Communication function		Standard:RS-232, optional:485, GPIB, LAN, CAN
Protective function		OVP, OCP, OPP, OTP, Vsense reverse protection, input OV/LV protection
Analog interface(optional)		Start, stop, alarm, 0-5V, 0-10V or 4-20mA
Efficiency		～93%
Operating temperature		0~40℃
Storage temperature		-10~70℃
Humidity		20%~90%,no condensation
Volume		19" Standard chassis 3U height 482×133.3×610
Weight		17kg	17kg	18kg	29kg	40kg	41kg
Remark		1. Set the test condition of accuracy/measurement accuracy as (25℃±5℃); 2. The time it takes for the output voltage to return to within "0.75% of the stable value" when the load changes from 100% to 50% or reverse.

Product model		XD631000 -30	XD631500 -30	XD631000 -40	XD631500 -40	XD631500 -40X
Input	phase	three-phase three-wire+PE
	voltage	340V~420VAC
	frequency	47-63HZ
Output	voltage	0～1000V	0～1500V	0～1000V	0～1500V	0～1500V
	current	0~30A	0~30A	0~40A	0~40A	0~40A
	power	0~10KW	0~15KW	0~10KW	0~15KW	0~18KW
Display mode		4.3 inch colorful LCD screen
Voltage resolution		0.1V
Current resolution		0.01A(＞1000A时,0.1A)
Power resolution		0.001kW(＞100kW时,0.01kW)
Setting accuracy¹	voltage	≤0.10%F.S.
	current	≤0.25%F.S.
	power	≤1.00%F.S.
Measuring accuracy	voltage	≤0.10%F.S.
	current	≤0.25%F.S.
	power	≤1.00%F.S.
Ripples 20Hz~2MHz	Vrms	350mV	400mV	350mV	400mV		400mV
	Vpp	1600mV	2400mV	1600mV	2400mV		2400mV
Load effect	voltage	≤0.05%F.S.
	current	≤0.15%F.S.
Source effect	voltage	≤0.02%F.S.
	current	≤0.05%F.S.
Transient response time²		≤2ms
Rise time		50ms(10%-90%)
Temperature drift	voltage	0.05% set value
	current	0.05% set value
Typical power factor		≥0.99
Noise		≤65dB(A)
OVP range		110%F.S
Maximum lead voltage reduction compensation		25V
Communication function		Standard:RS-232, optional:485, GPIB, LAN, CAN
Protective function		OVP, OCP, OPP, OTP, Vsense reverse protection, input OV/LV protection
Analog interface(optional)		Start, stop, alarm, 0-5V, 0-10V or 4-20mA
Efficiency		～93%
Operating temperature		0~40℃
Storage temperature		-10~70℃
Humidity		20%~90%,no condensation
Volume		19" Standard chassis 3U height 482×133.3×610
Weight		29kg	40kg	29kg	40kg		41kg
Remark		1. Set the test condition of accuracy/measurement accuracy as (25℃±5℃); 2. The time it takes for the output voltage to return to within "0.75% of the stable value" when the load changes from 100% to 50% or reverse.

Product model		XD631000-60	XD631000-60X	XD632250-20	XD632250-20X
Input	phase	three-phase three-wire+PE
	voltage	340V~420VAC
	frequency	47-63HZ
Output	voltage	0～1000V	0～1000V	0～2250V	0～2250V
	current	0~60A	0~60A	0~20A	0~20A
	power	0~15KW	0~18KW	0~15KW	0~18KW
Display mode		4.3 inch colorful LCD screen
Voltage resolution		0.1V
Current resolution		0.01A(＞1000A时,0.1A)
Power resolution		0.001kW(＞100kW时,0.01kW)
Setting accuracy¹	voltage	≤0.10%F.S.
	current	≤0.25%F.S.
	power	≤1.00%F.S.
Measuring accuracy	voltage	≤0.10%F.S.
	current	≤0.25%F.S.
	power	≤1.00%F.S.
Ripples 20Hz~2MHz	Vrms	380mV		600mV
	Vpp	1800mV		3200mV
Load effect	voltage	≤0.05%F.S.
	current	≤0.15%F.S.
Source effect	voltage	≤0.02%F.S.
	current	≤0.05%F.S.
Transient response time²		≤2ms
Rise time		50ms(10%-90%)
Temperature drift	voltage	0.05% set value
	current	0.05% set value
Typical power factor		≥0.99
Noise		≤65dB(A)
OVP range		110%F.S
Maximum lead voltage reduction compensation		25V		37.5V
Communication function		Standard:RS-232, optional:485, GPIB, LAN, CAN
Protective function		OVP, OCP, OPP, OTP, Vsense reverse protection, input OV/LV protection
Analog interface(optional)		Start, stop, alarm, 0-5V, 0-10V or 4-20mA
Efficiency		～93%
Operating temperature		0~40℃
Storage temperature		-10~70℃
Humidity		20%~90%,no condensation
Volume		19" Standard chassis 3U height 482×133.3×610
Weight		40kg	41kg	40kg	41kg
Remark		1. Set the test condition of accuracy/measurement accuracy as (25℃±5℃); 2. The time it takes for the output voltage to return to within "0.75% of the stable value" when the load changes from 100% to 50% or reverse.

PV Array Simulator for Inverter & Solar Testing

Симулятор Массива Фотоэлектрических Систем

подробности о продукте

Характеристики продукта

Запросить сейчас

Подписка на рассылку новостей

Продукт

Связаться с нами

Социальные сети

PV Array Simulator for Inverter & Solar Testing

Симулятор Массива Фотоэлектрических Систем

подробности о продукте

Характеристики продукта

Запросить сейчас

Сопутствующие товары

Подписка на рассылку новостей

Продукт

Связаться с нами

Социальные сети
